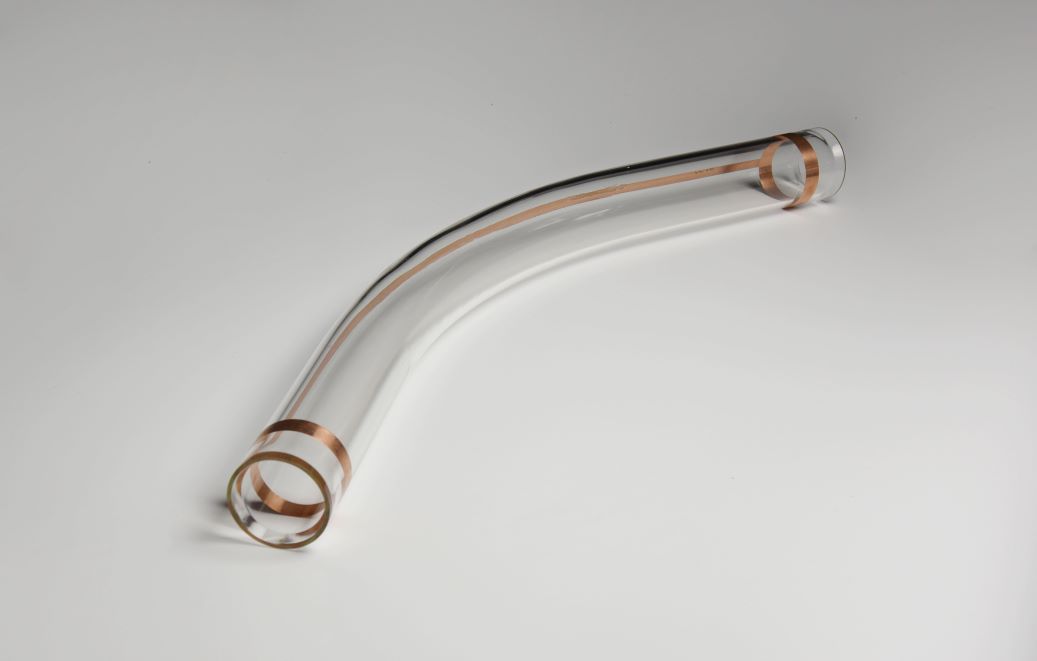

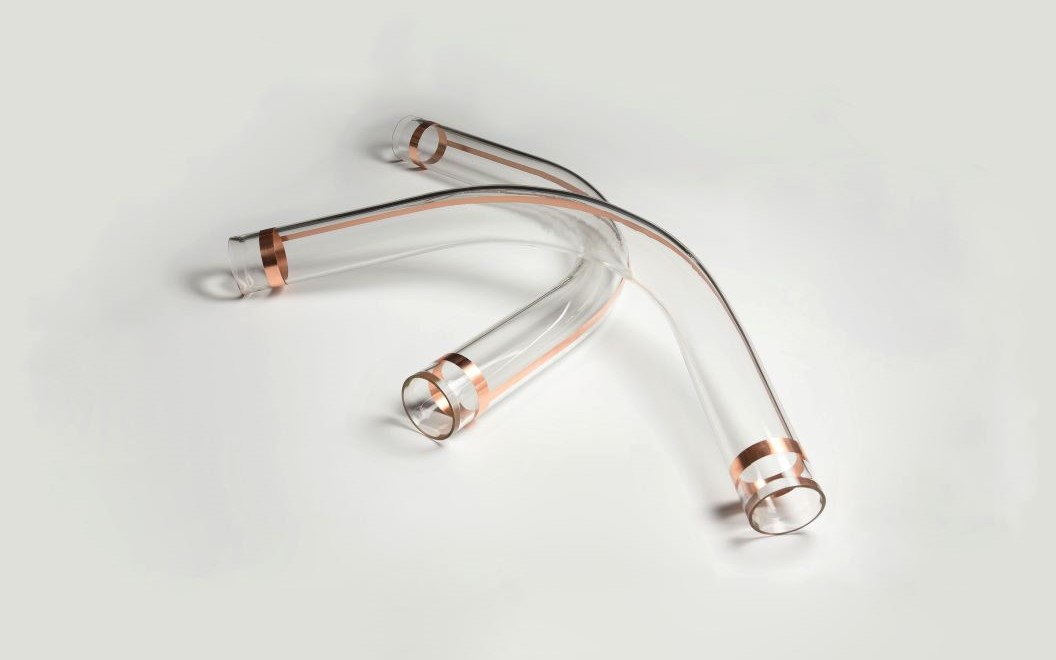

Glass Elbow
Material：Borosilicate3.3
Temperature difference resistance: 120°C
High temperature resistance: 400°C
OD	Art.No.	Radius to center line(mm)	ID (mm)	Angle	Leg length (mm)	Safe working pressure (mPa)
38.1	HB380410090100100	100	30.1	90°	100	1.86
	HB380410045100100	100	30.1	45°	100	1.86
	HB380438090100100	380	30.1	90°	100	1.86
	HB380438045141141	380	30.1	45°	141	1.86
45	HB450510090100100	100	35	90°	100	2
	HB450510045100100	100	35	45°	100	2
	HB450525090200200	250	35	90°	200	2
	HB450525045200200	250	35	45°	200	2
	HB450538090099099	380	35	90°	99	2
	HB450538045141141	380	35	45°	141	2
47	HB470510090100100	100	37	90°	100	1.89
	HB470510045100100	100	37	45°	100	1.89
	HB470525090200200	250	37	90°	200	1.89
	HB470525045200200	250	37	45°	200	1.89
	HB470550090200200	500	37	90°	200	1.89
	HB470550045200200	500	37	45°	200	1.89
50.8	HB510510090100100	100	40.8	90°	100	1.71
	HB510510045100100	100	40.8	45°	100	1.71
	HB510535090100100	350	40.8	90°	100	1.71
	HB510530045100100	300	40.8	45°	100	1.71
	HB510550090200200	500	40.8	90°	200	1.71
	HB510550045200200	500	40.8	45°	200	1.71
56	HB560510090100100	100	46	90°	100	1.52
	HB560510045100100	100	46	45°	100	1.52
	HB560530090100100	300	46	90°	100	1.52
	HB560530045100100	300	46	45°	100	1.52
	HB560550090200200	500	46	90°	200	1.52
	HB560550045200200	500	46	45°	200	1.52
63.5	HB630512090150150	120	53.5	90°	150	1.3
	HB630512045150150	120	53.5	45°	150	1.3
	HB630530090200200	300	53.5	90°	200	1.3
	HB630530045200200	300	53.5	45°	200	1.3
	HB630550090200200	500	53.5	90°	200	1.3
	HB630550045200200	500	53.5	45°	200	1.3
66	HB660512090150150	120	56	90°	150	1.25
	HB660512045150150	120	56	45°	150	1.25
	HB660530090200200	300	56	90°	200	1.25
	HB660530045200200	300	56	45°	200	1.25
	HB660550090200200	500	56	90°	200	1.25
	HB660550045200200	500	56	45°	200	1.25
76.2	HB760515090200200	150	66	90°	200	1.06
	HB760515045200200	150	66	45°	200	1.06
	HB760525090200200	250	66	90°	200	1.06
	HB760525045200200	250	66	45°	200	1.06
	HB760550090200200	500	66	90°	200	1.06
	HB760550045200200	500	66	45°	200	1.06
80	HB800515090200200	150	70	90°	200	1
	HB800515045200200	150	70	45°	200	1
	HB800525090200200	250	70	90°	200	1
	HB800525045200200	250	70	45°	200	1
	HB800550090200200	500	70	90°	200	1
	HB800550045200200	500	70	45°	200	1
89	HB890550090200200	500	79	90°	200	0.88
