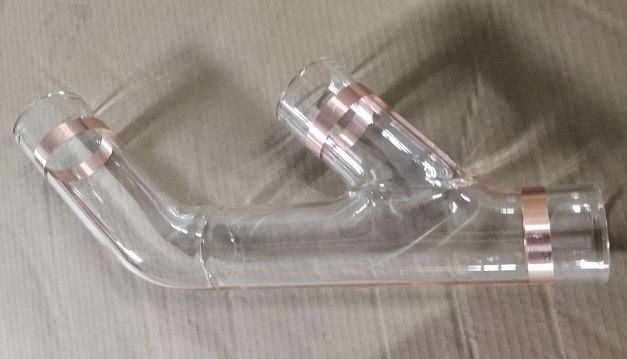

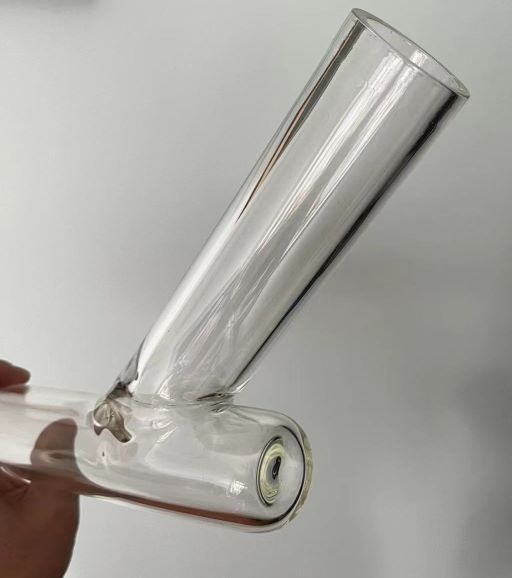

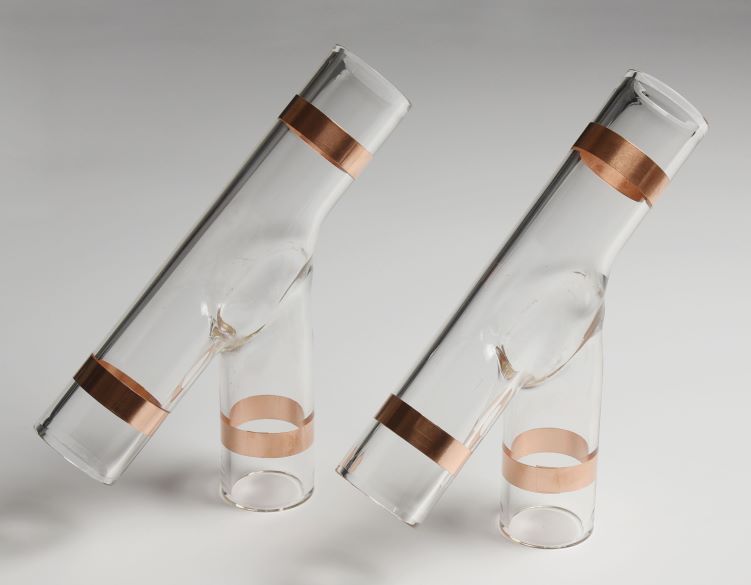

Glass Y Pipe
Material: Borosilicate3.3
Temperature difference resistance：120℃
High temperature resistance：400℃

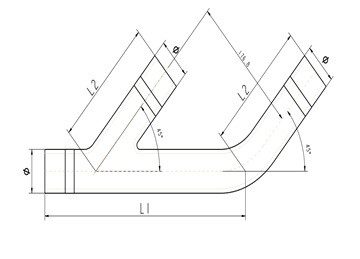

Glass Y pipe 45°

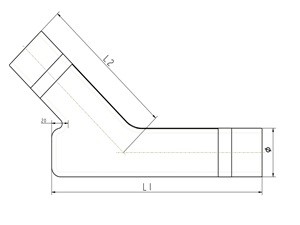

	Drawing No.	Ф/mm	L1/mm	L2/mm
	DUY450545250150	45	250	160
	DUY470545250150	47	250	160
	DUY510545250144	50.8	250	155
	DUY560545250148	56	250	160
	DUY630545280166	63.5	280	180
	DUY660545280166	66	280	180
	DUB450545250150	45	230	155
	DUB470545250150	47	230	155
	DUB510545250144	50.8	235	155
	DUB560545250148	56	240	155
	DUB630545280166	63.5	260	160
	DUB660545280166	66	260	160
	DUF450545250150	45	335	165
	DUF470545250150	47	335	165
	DUF510545250144	50.8	335	165
	DUF560545250148	56	335	165
	DUF630545280166	63.5	335	165
	DUF660545280166	66	335	165
