Glass T Pipe
Material: Borosilicate3.3 Temperature difference resistance：120℃ High temperature resistance：400℃
	Glass T pipe

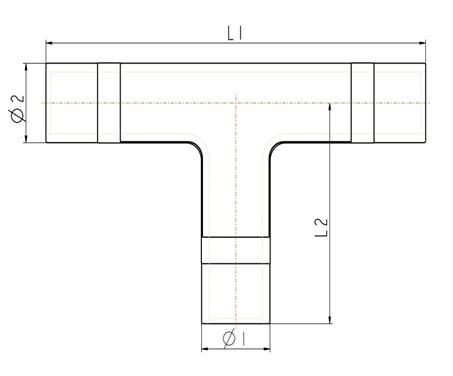

	Drawing No.	Ф1/mm	L1/mm	Ф2/mm	L2/mm

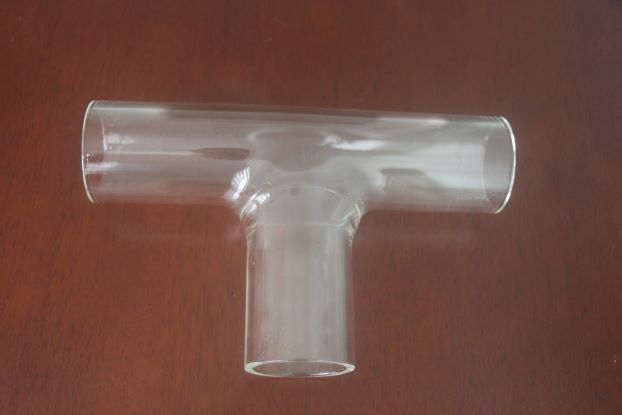

	ZEN450590250103	45	250	45	125
	ZEN470590250102	47	250	47	125
	ZEN510590250100	50.8	250	50.8	125
	ZEN560590250097	56	250	56	125
	ZEN630590280108	63.5	280	63.5	140
	ZEN660590280107	66	280	66	140

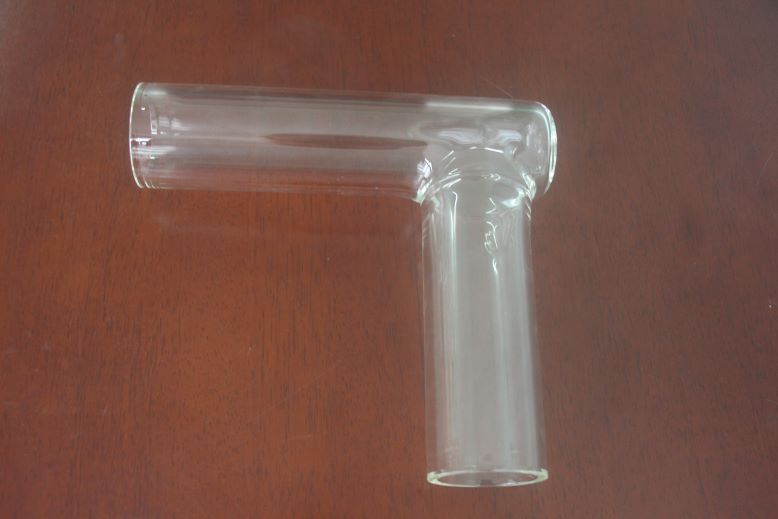

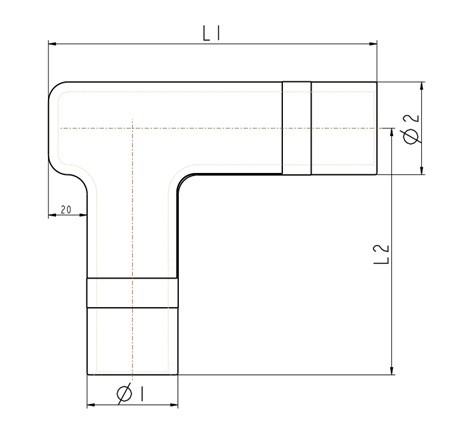

	ZEB450590250103	45	170	45	125
	ZEB470590250102	47	170	47	125
	ZEB510590250100	50.8	170	50.8	125
	ZEB560590250097	56	175	56	125
	ZEB630590280108	63.5	195	63.5	140
	ZEB660590280107	66	195	66	140
